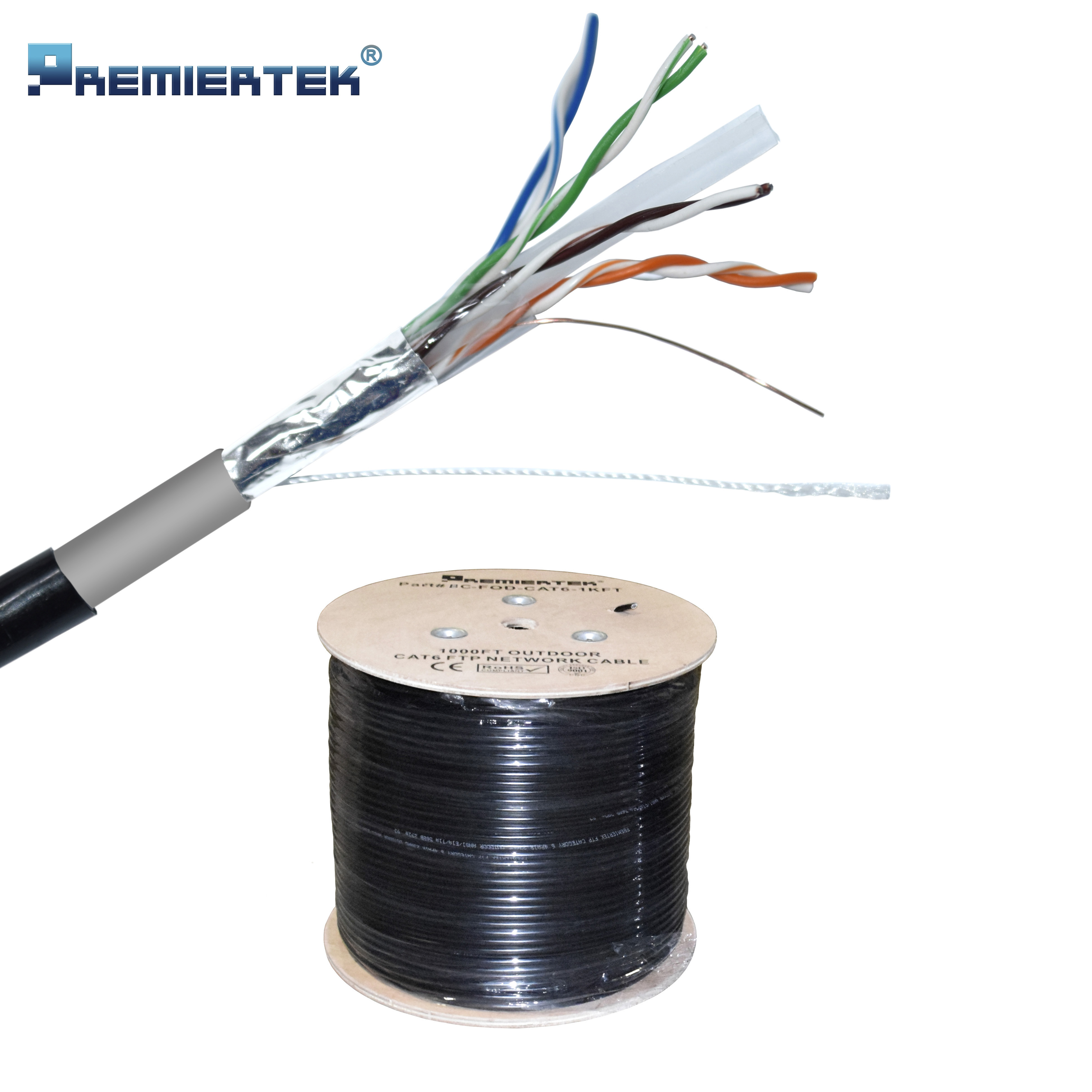

Premiertek Outdoor FTP 1000Ft Double Jacket Foil Cat6 23AWG Solid Pure Copper 4-pairs Premium Network LAN Cable Direct Burial UV Rated Waterproof

Part#: BC-FOD-CAT6-1KFT

Overview:

Premiertek Direct Burial 100% Pure Copper CAT6 F/UTP foiled twisted pair is used for applications that require the cable to be outdoors or directly in ground with or without the use of a conduit. Direct Burial CAT6 is made with a polyethylene (PE) jacket to protect the cable from water, and extreme temperatures. Four color-striped pairs make it easy to install and reduces alien crosstalk. This cable can be measured and cut to exact distances, then terminated to a connector, jack, or patch panel. This CAT6 cable is certified and fluke tested for gigabit Ethernet and 550Mhz.

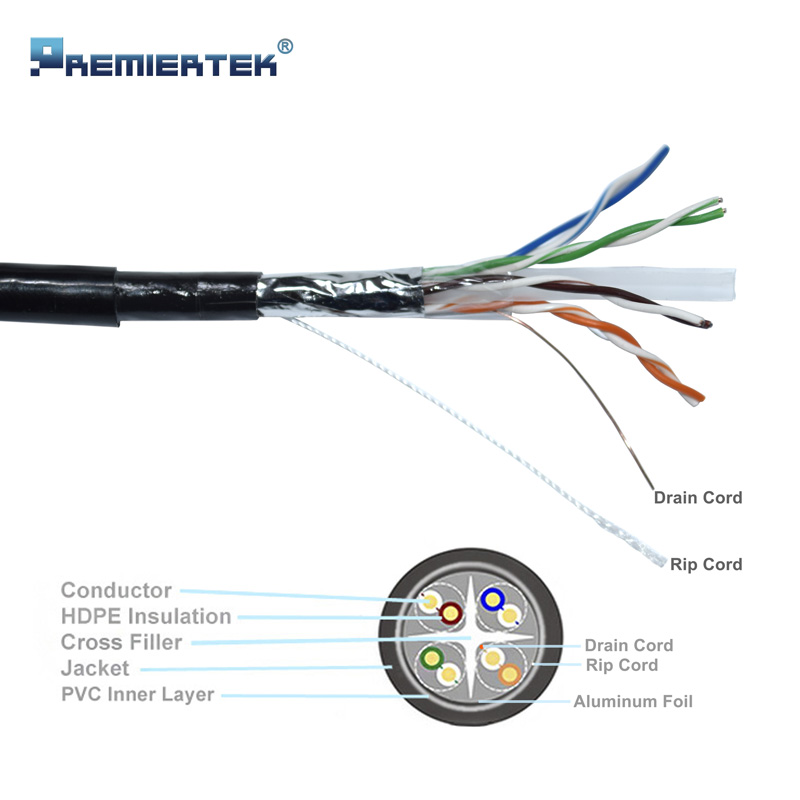

Product Features:

Conductors: 100% Solid Pure Copper
U/V Resistant and Water Proof HDPE Insulated LDPE Jacket
Thick Polyethylene (PE) Protective Jacket for Indoor/Outdoor use
Shielding: F/UTP Overall Aluminum Foiled Twisted Pair
Color: Black
Cat6 Certified Transfer Rate: 10/100/1000 mbps (1000Base-T Gigabit).

1000-foot foil shielded Twisted Ethernet cable (F/UTP)
Four pairs conductors
Filler: PE cross
Drain wire: Yes
Rip cord: Yes

F/UTP Foiled Twisted Pairs: Aluminum Foil
Conductor 23AWG / 0.57mm
Lead-free
Supplied in 1000ft Wooden Spool

Specifications:

Packaging: Wooden Spool in brown box packaging
Insulation: HDPE 1.01±0.03mm
Jacket: Black UV/WaterProof LDPE 5.8±0.03mm

Applications:

Gigabit Ethernet
100 Mbps TPDDI
155 Mbps ATM
IEEE 802.3
IEEE 802.5
IEEE 802.12
ISDN
VOICE

Regulatory Approvals:

RoHS

Dimension (LxWxH): 13"x13"x10.75"

Weight: 28.9lbs
