Premiertek Outdoor 1000Ft Double Jacket Foil Cat5e 24AWG CCA FTP 4-pairs Premium Network LAN Cable Direct Burial UV Rated Waterproof

Part#: FOD-CAT5E-1KFT

Overview:

Premiertek Direct Burial CAT5e FTP is used for applications that require the cable to be outdoors or directly in ground with or without the use of a conduit. Direct Burial CAT5e is made with a polyethylene (PE) jacket to protect the cable from water, and extreme temperatures. Four color-striped pairs make it easy to install and reduces alien crosstalk. This cable can be measured and cut to exact distances, then terminated to a connector, jack, or patch panel. This CAT5e cable is certified and fluke tested for gigabit Ethernet and 450Mhz.

Product Features:

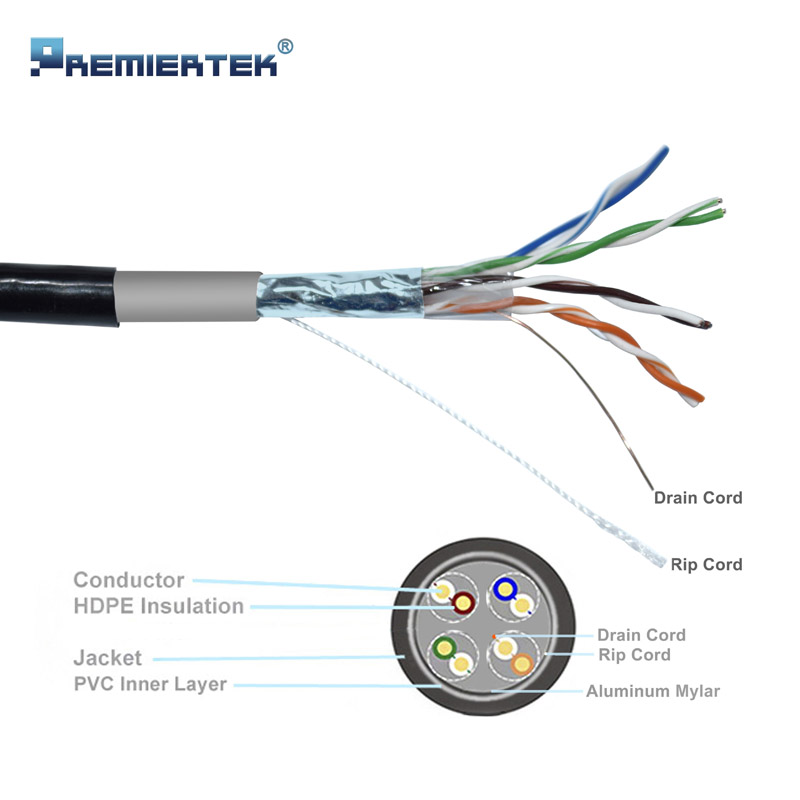

U/V Resistant and Water Proof HDPE Insulated LDPE Jacket

Thick Polyethylene (PE) Protective Jacket for Indoor/Outdoor use

Color: Black

Cat5E Certified Transfer Rate: 10/100/1000 mbps (1000Base-T Gigabit).

1000-foot foil shielded Twisted Ethernet cable

(F/UTP)

Copper Clad Aluminum/Copper Clad Alloy (CCA) construction

Four pairs conductors

Filler: PE cross

Drain wire: Yes

Rip cord: Yes

F/UTP shielded Twisted Pairs: Aluminum Mylar

Conductor 24AWG / 0.51mm

Lead-free

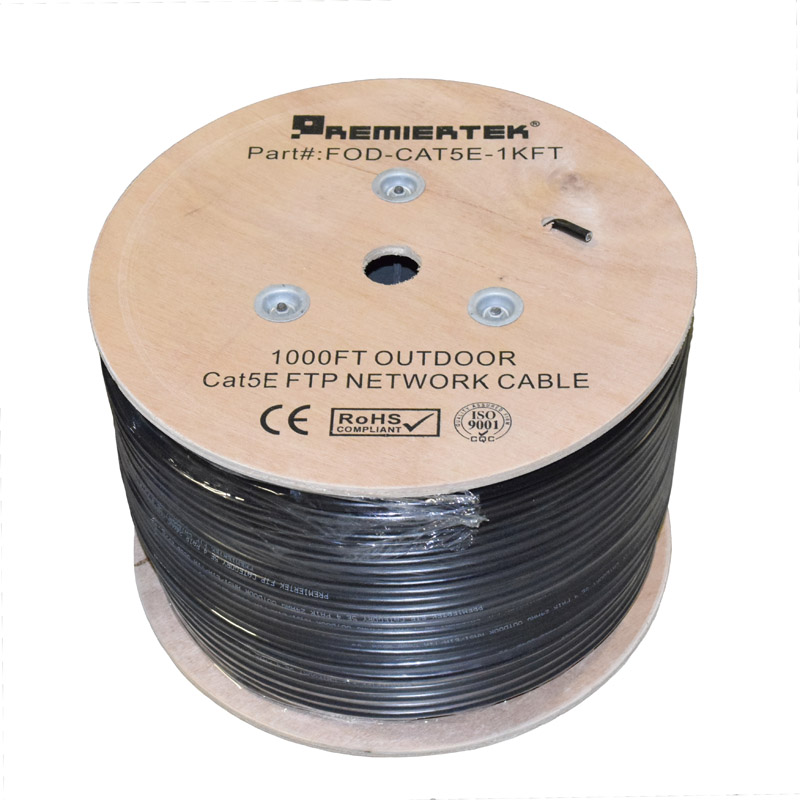

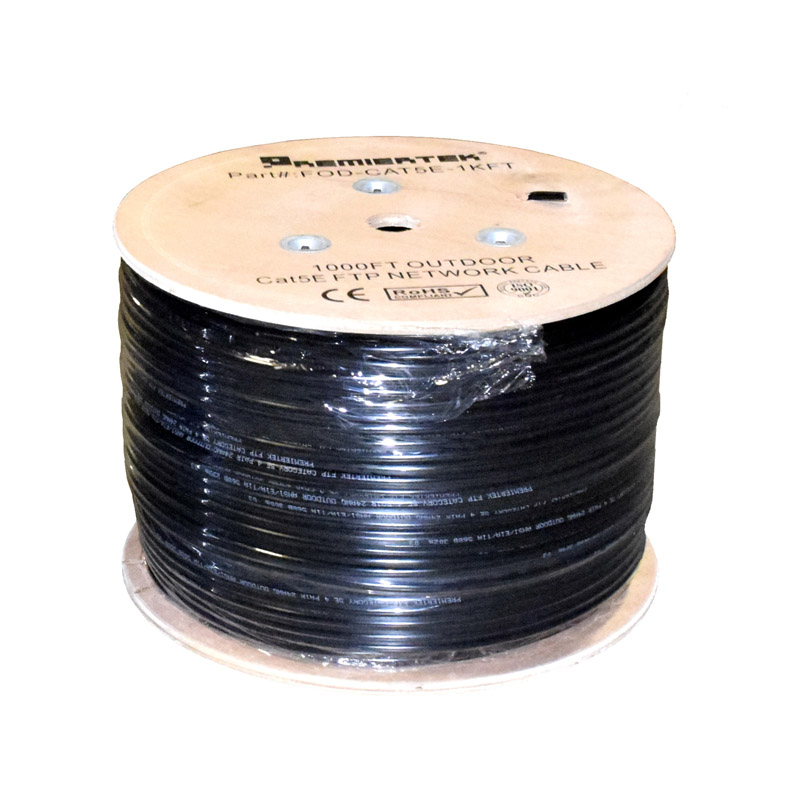

Supplied in 1000ft Wooden Spool

Specifications:

Packaging: Wooden Spool in brown box packaging
Insulation: HDPE 1.01±0.03mm
Jacket: Black UV/WaterProof LDPE 5.8±0.03mm

Applications:

Gigabit Ethernet
100 Mbps TPDDI
155 Mbps ATM
IEEE 802.3
IEEE 802.5
IEEE 802.12
ISDN
VOICE

Regulatory Approvals:

RoHS

Dimension (LxWxH): 13"x13"x10.75"

Weight: 25.9lbs
