Brand New

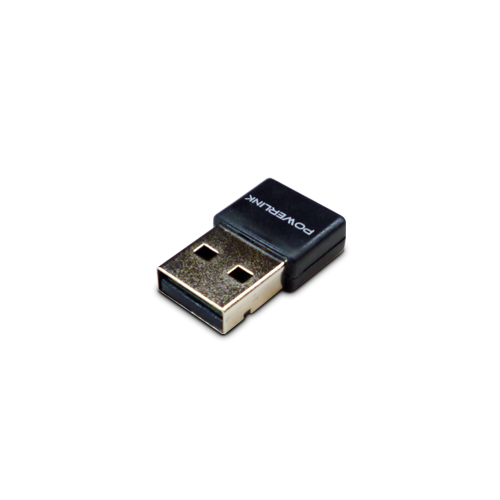

PowerLink MicroN Wireless 150Mbps 802.11n USB Adapter
Comply with 802.11N, 802.11g and 802.11b Standards


Model: MicroN
Part#: PL-8188CUS





Overview:

The PowerLink MicroN is a 802.11b/g/n WLAN USB adapter w/compact size design, It supports up to 150Mbps high-speed wireless network connections.

Features:

  • Supports WMM function

  • Ultra Compact size

  • 256-bit WEP security

  • WPA, WPA-PSK, WPA2, WPA2-PSK

Specification:

  • RF Chipset: Realtek RTL8188CUS

  • Standard: IEEE 802.11b/g/n

  • Interface: USB 2.0 and 1.1 compliant

  • Antenna Type: Internal

  • Power consumption: Transmit<305mA. Receive<190mA

  • Receive Sensitivity: -64dBm, 802.11n. -70dBm, 802.11g. -80dBm, 802.11b.

  • Operating Range: Up to 300 meters depending on surrounding environment.

  • Frequency: 2.412~2.484GHz ISM band

  • Modulation Method: IEEE 802.11b: DBPSK / DQPSK / CCK. IEEE 802.11g: BPSK / QPSK/ 16QAM / 64QAM

  • Data Transfer Rate:

    • 802.11b: Up to 11Mbps.

    • 802.11g: Up to 54Mbps.

    • 802.11n: 20Mhz up to 72.2Mbps, 40Mhz up to 150Mbps

  • Security: 64/128bit WEP (Hex&ASCII). WPA, WPA-PSK, WPA2, WPA2-PSK, TKIP/AES

  • CE FCC RoHS Reach compliant

  • Dimension:  24(L) x 14(W) x 6(H) mm

Package Content:

  • 802.11n Wireless LAN USB Adapter

  • Driver/Manual CD

  • Quick User Manual

Operating System:

  • Win 2000/CE/XP/Vista 32/64-bit/7/8/10

  • Mac 10.4, 10.5, 10.6.

  • Linux Kernel v2.6.6 and after

  • Works with Raspberry Pi 1 2

RTL8188CUS Drivers #13

Warranty: 1 year

Shipping details:

Part# Carton Qty/Weight (lbs) Shipping Weight ea(lbs.) UPC Code Package Dimension
(L x W x H)		 Carton Dimension
(L x W x H)
PL-8188CUS 100 / 9.8 0.1 813538012113 6.6" x 4.1" x 0.75" 52 x 36 x 14 cm
21.75" x 14.5" x 5.75"
