Brand New

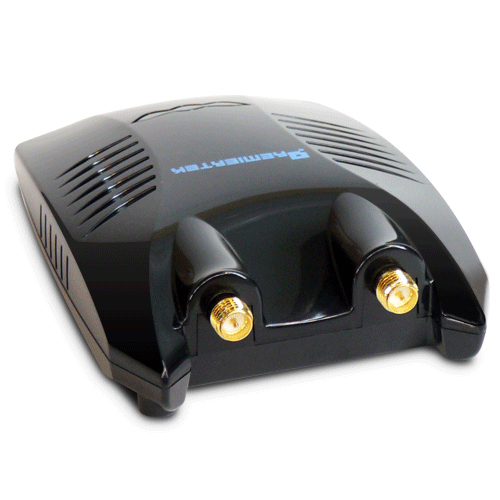

POWERLINK Speedy2
Wireless 300Mbps 802.11b/g/n MIMO USB Adapter
28dBm w/Dual High Gain 5dBi Dipole Antenna
Improving 6X Signal Reception and 3x Speed
For PC, MAC and Linux


Model: Speedy2
Part#: PT-H10DN-1W











The POWERLINK Speedy2 is a powerful WLAN USB adapter w/2 5dBi antenna. The advantage of 2x5dBi antennas and 1000mW high power output together can help the user to reach more wireless network that can't never be reached before with other wireless adapter. Not only the improvement of ultra range it performs, it also can increase the transmit and receipt speed. Thus the Speedy2 provides powerful and stable performance to PC & NB linked into unlimited wireless network world. Upgrade your networking today and enjoy the faster speed internet experience.

Features:

  • 250% Performance

  • 250% Distance

  • Operating distance of up to 1500 meters

  • Dual 5dBi swivel omni-directional high gain antenna

  • 2T2R 802.11n MIMO (Two Transmit and Two Receive path)

  • Smart MIMO Antenna for long-range connectivity

  • Transfer up to 300Mbps

  • NDS and PSP X-link support

  • WiFi Direct supported

  • 256-bit WEP security

  • WPA, WPA-PSK, WPA2, WPA2-PSK

  • Design for indoor usage

Specification:

  • RF Chipset: Ralink RT3072

  • Standard: IEEE 802.11b/g/n

  • WiFi Direct supported

  • Interface: USB 2.0  and 1.1 compliant

  • Antenna Type: RP-SMA Jack

  • Transmitter Power:

    • 802.11b: 28 ± 1.5dBm

    • 802.11g: 23 ± 1.5dBm

    • 802.11n: 23 ± 1.5dBm

  • Power consumption: Transmit<1000mA. Receive<600mA

  • Operating Range: Up to 1500 meters (Depending on surrounding environment)

  • Frequency: IEEE 802.11b: 2.4~2.497GHz. IEEE 802.11g: 2.4~2.4835GHz

  • Modulation Method: IEEE 802.11b: DBPSK / DQPSK / CCK. IEEE 802.11g: BPSK / QPSK/ 16QAM / 64QAM

  • Data Transfer Rate: IEEE 802.11b: 1, 2, 5.5, 11Mbps. IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps. 802.11n: 20Mhz up to 144Mbps, 40Mbps up to 300Mbps

  • Security: 64/128bit WEP (Hex&ASCII). WPA, WPA-PSK, WPA2, WPA2-PSK, TKIP/AES

  • FCC RoHS compliant

  • Dimension:

    • Antenna length: 191mm

    • USB Adapter: 90mm x 65mm x 20mm

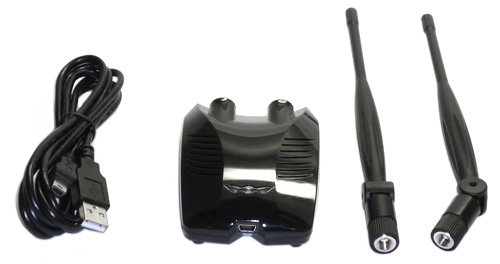

Package Content:

  • 802.11b/g/n Wireless LAN USB Adapter

  • 2pcs High Gain 5dBi Dipole Antenna

  • 5ft USB Cable

  • Driver/Manual CD

Operating System:

  • Win 2000/XP/x64/Vista/7/8

  • Mac OSX 10.6/10.7/10.8

  • Linux Kernel 2.6.6 and after (Support BackTrack 3, 4)

Warranty: 1 year
